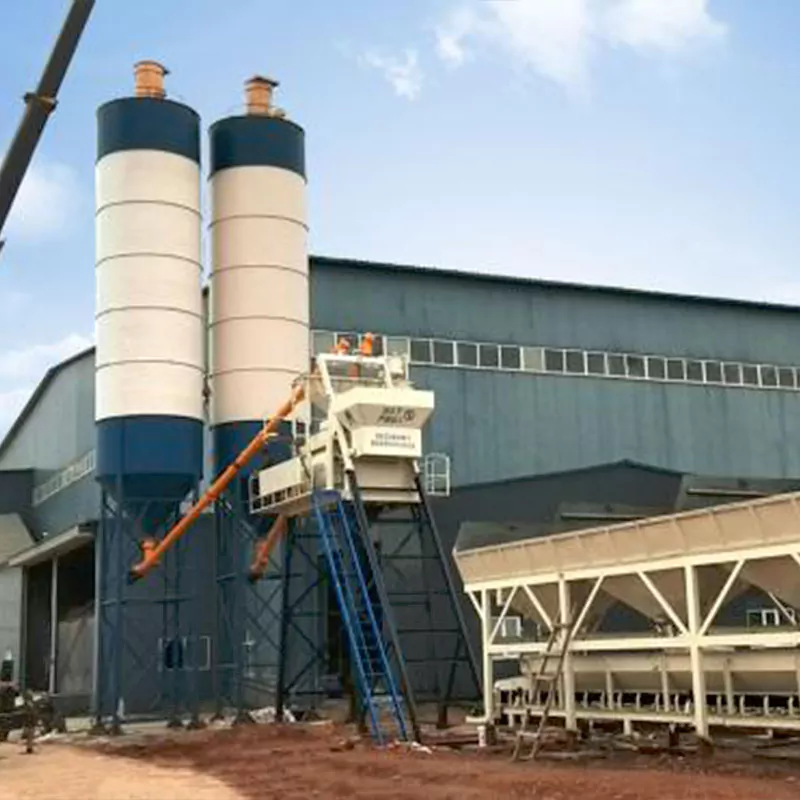

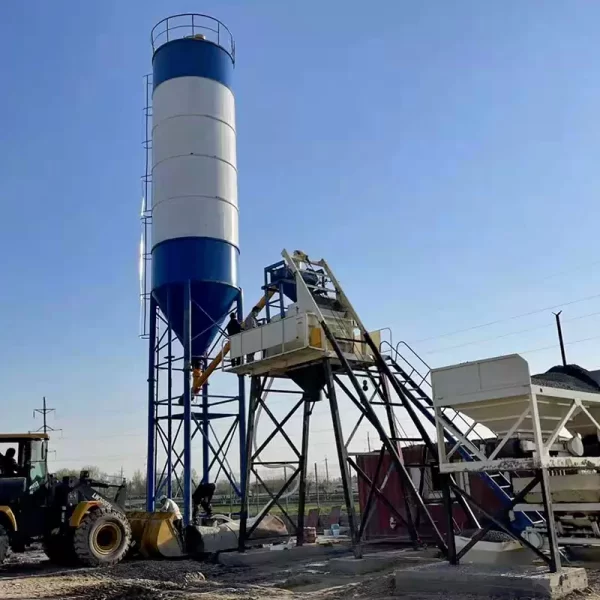

HZS50 concrete batching plant

Mixer model: JS1000
Batching machine model: PLD1600 (pneumatic single weighing)
Discharge height: 2.7-3.8m
Theoretical production capacity: 50m³/h
Total power: 115Kw
Application field: widely used in large and medium-sized prefabricated component factories and industrial and civil construction projects such as roads, bridges, water conservancy, docks, etc.

Product advantages
The theoretical productivity of this model of HZS50 concrete batching plant is 50 cubic meters per hour; the mixing host is JS1000 forced mixer, and the batching machine model is PLD1600, with accurate measurement and high production efficiency. The screw conveyor is LSY250 type. It is a complete set of semi-automatic concrete mixing equipment consisting of feeding, batching, mixing, electrical control and steel structure components. This mixing plant has the advantages of less capital, less space, less equipment, and can produce high-quality and efficient concrete under the condition of accurate metering of the batching machine. Suitable for small-scale construction sites, precast plants and commercial concrete production plants.

Whole station partmodelHZS50
Theoretical productivity (m3/h)50
Standard discharge height (m)2.7-3.8
Working cycle time (s)72
Dimensions (mm) (length X width X height)14950x17840x17245
Total installed capacity (kw)115KW
Mixer partmodelJS1000
Batching machine partmodelPLD1600 single name
Pneumatic systemAir compressor model1.0-7
Rated air volume (m3/min)1.67
Rated exhaust pressure (MPa)0.8
Motor power (KW)5.5
Weighing systemSand and gravel measurement accuracy range (kg) accuracy+_2%
Cement measurement accuracy range (kg) accuracy+_1% +_1%
Water metering accuracy range (kg) accuracy+_1%
Additive metering accuracy range (kg) accuracy+_2%
