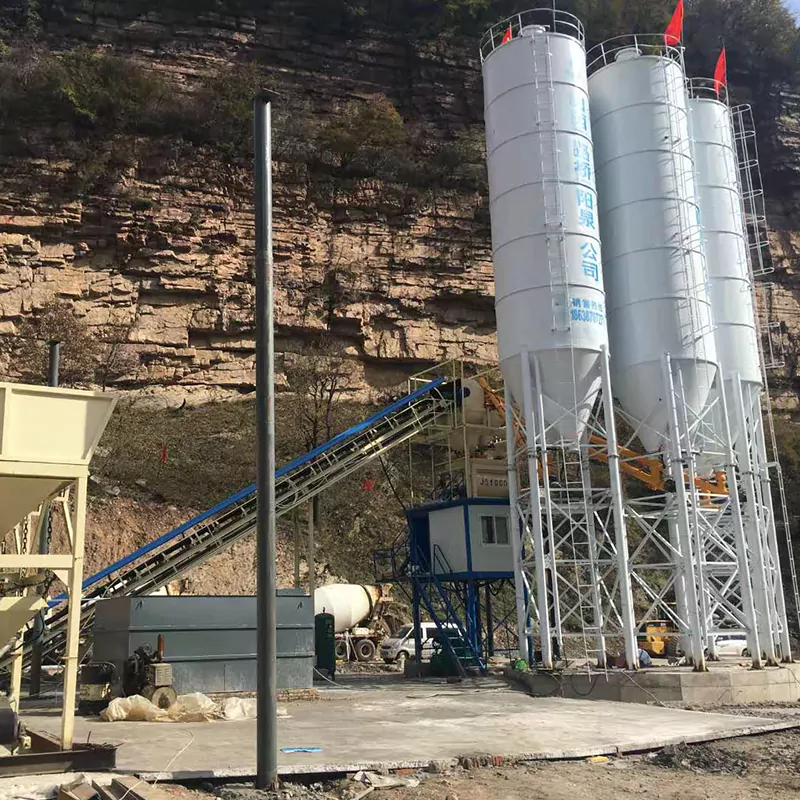

HZS60 concrete batching plant

Mixer model: JS1000
Batching machine model: PLD1600
Discharge height: 3.8m
Theoretical production capacity: 60m³/h
Total power: 105Kw
Application field: widely used in large and medium-sized prefabricated component factories and industrial and civil construction projects such as roads, bridges, water conservancy, docks, etc.

Product advantages
The theoretical productivity of HZS60 concrete batching plant is 60 cubic meters per hour, also known as 60 commercial concrete batching plant. Equipped with JS1000 forced twin-shaft mixing host, the nominal capacity is 1000L, the batching capacity of the batching machine is 1600L, and the productivity of the screw conveyor is 80t/h. It is mainly composed of cement silo | cement tank, screw conveyor, PLD batching machine, twin-shaft mixing host, computer control and metering system. The whole machine adopts a dual computer control system, which can automatically ensure the continuous production control of the system without any influence when the two machines are switched. The dynamic panel display can clearly understand the operation of each part. The intuitive monitoring interface can clearly and accurately observe the on-site workflow. It has the advantages of high productivity, reliable work performance, low investment, strong mobility and small footprint.
It is widely used in large and medium-sized building construction, road and bridge engineering and prefabrication plants producing concrete products. It is an ideal equipment for large and medium-sized construction projects, road and bridge engineering and commercial concrete production units.

Whole station partmodelHZS60
Theoretical productivity (m3/h)60
Standard discharge height (m)3.8
Working cycle time (s)60
Dimensions (mm) (length X width X height)36500x111300x20400
Total installed capacity (kw)105
Mixer partmodelJS1000
Batching machine partmodelPLD1600 Pneumatic Scale
Pneumatic systemAir compressor model1.5-7
Rated air volume (m3/min)1.67
Rated exhaust pressure (MPa)0.8
Motor power (KW)7.5
Weighing systemSand and gravel measurement accuracy range (kg) accuracy+_2%
Cement measurement accuracy range (kg) accuracy+_1%
Water metering accuracy range (kg) accuracy+_1%
Additive metering accuracy range (kg) accuracy+_2%
