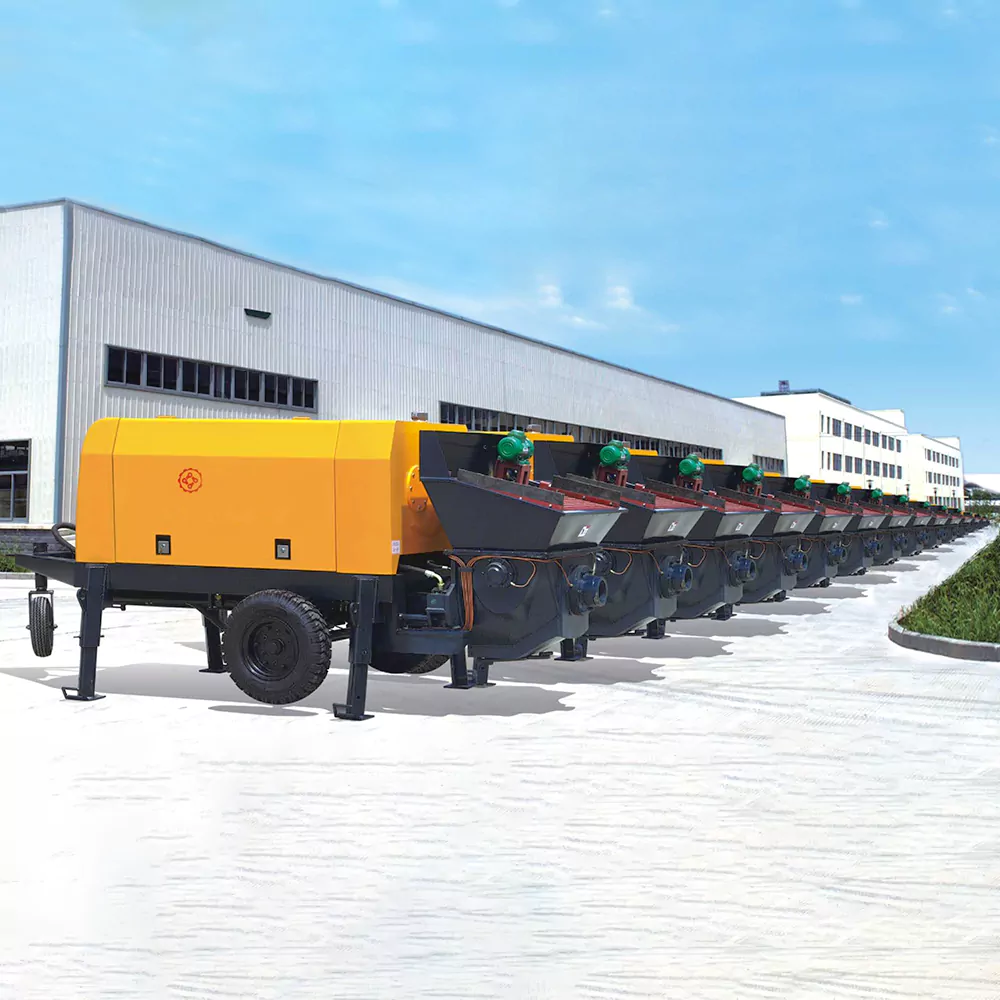

Concrete pump is a kind of equipment that uses pressure to continuously convey concrete along the pipeline. It has been widely used in building construction. , In view of the characteristics of building ground construction, a small S-tube valve concrete-HBT series fine stone concrete pump was designed and manufactured, which successfully solved the problem of conveying fine stone concrete in building ground construction. It is the first fine stone concrete conveying equipment in China. Come, Saidi company has been leading the development of this product in China.
Main technical parameters
| Products«&■■■■ | gauge ts | HBT15-13SD | HBT29-10SC | HBT30-10SE | HBT40-11SE | HBT50-13SE | HBT60-13SD | HBT8O-13SD |
|---|---|---|---|---|---|---|---|---|
| Theoretical delivery■ | High pressure | 7 | 9 | 20 | 16 | 22 | 37 | SO |
| (mVh) | Low pressure | IS | 18 | 32 | 37 | 46 | 62 | B5 |
| Theoretical delivery pressure | High pressure | 13 | 10 | 10 | 11 | 13 | 13 | 13 |
| Force(MPa) | Low Pressure | 6 | 5.5 | S3 | S3 | 6.2 | 6.4 | 6.4 |
| Maximum conveying distance | Horizontal | 300 | 350 | 350 | 400 | 450 | 400 | 400 |
| From (m) | Vertical | 110 | 130 | 130 | 150 | 170 | ISO | 150 |
| ff 4*7 6mm | 2S | 25 | 2S | |||||
| Maximum aggregate particle size (mm) | Pipe diameter 9ni m | 30 | mo | 30 | ||||
| @$103 mm | 35 | 3S | ||||||
| ©tPlSBrnm | 40 | 40 | 40 | |||||
| 45 | 45 | |||||||
| Main motor power (kW) | 30 | 30 | F | 4S | SS | 90 | 110 | |
| Hopper volume) | ) | 0.34 | 36 | 0.4 | 0.5 | 0.5 | 0.6 | 0.G |
| Feeding height (mm) | 950 | 1000 | 1000 | 1100 | 1100 | 1400 | 1400 | |
| Hydraulic tank volume {U | 120 | ISO | 200 | 260 | 320 | 550 | 5S0 | |
| Dispense valve form | ||||||||
| Host mass (kg ) | 1480 | 1680 | 2200 | 2900 | 3200 | S200 | S600 | |
| Overall dimension length x width | x height (mm } | 5380x1270 | 3400x1420 | 3770x1420 | 3990x1670 | 4300x1670 | 6200x1582 | 6200x1882 |
| xl4S0 | xl620 | xl620 | xlGSO | xl680 | rainbow965 | xl965 |
Scope application
L HBT15-?5fJl type is suitable for large surface root and high-efficiency construction of fine stone concrete or mortar filling layer in building ground construction. It can be used as a shotcrete pump after adding spray accessories.
N HBT40 model can not only convey fine stone concrete, but also can be used for conveying Jintong concrete, which is the least engineering.
Soil HBT60-S0M model is a concrete pump for construction. It can be used for concrete construction of high-rise buildings, railways and highway tracks, bridges and culverts, hydropower, mining and national defense projects.
