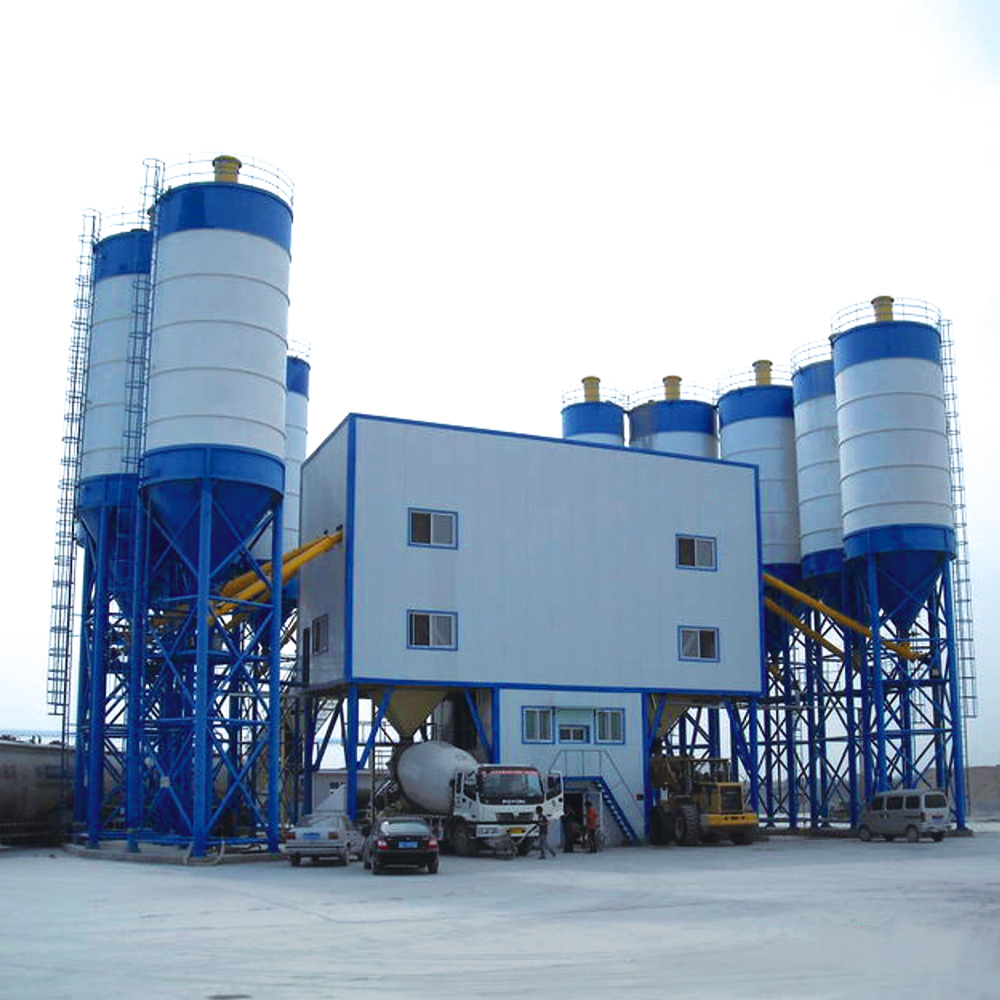

HZS180 concrete batching plant

Mixer model: JS3000
Batching machine model: PLD4800
Discharge height: 4m
Theoretical production capacity: 180m³/h
Total power: 260Kw
Application field: widely used in large and medium-sized prefabricated component factories and industrial and civil construction projects such as roads, bridges, water conservancy, docks, etc.

Product advantages
The theoretical productivity of HZS180 concrete batching plant is 180m3/h, the mixer model is JS3000 forced concrete mixer, the batching machine is PLD4800, the number of bins is 4, the batching capacity is 180m3, and the discharge height is 4 meters. the height of.
The HZS180 station includes two rows of cement silos and a series of screw conveyors, and the operation of the entire concrete mixing station is controlled by a computer control room. The mixing material can be conveyed to two concrete trucks at the same time. The electronic weighing, microcomputer control, digital display and other control technologies of new design ideas are also adopted. The electronic weighing has a buffer device and automatic compensation function, and the measurement accuracy is high. The sand and gravel feeding system adopts a large-width herringbone belt to feed the material, and a pedestrian security inspection aisle can be set up as required. There is a large-capacity sand and stone storage bin on the roof, and the entire concrete production is in a fully enclosed environment from measurement to mixing and discharging. , has outstanding performance in green environmental protection.
Many advantages make the Great Wall HZS series 180 batching plant an ideal choice for commercial concrete batching plant enterprises and construction units that require high-quality concrete.

Whole station partmodelHZS180
Theoretical productivity (m3/h)180
Standard discharge height (m)4
Working cycle time (s)60
Dimensions (mm) (length X width X height)59811x20660x23700
Total installed capacity (kw)260
Mixer partmodelJS3000
Batching machine partmodelPLD4800
Pneumatic systemAir compressor model1.8-7
Rated air volume (m3/min)1.67
Rated exhaust pressure (MPa)0.8
Motor power (KW)18.5
Weighing systemSand and gravel measurement accuracy range (kg) accuracy+_2%
Cement measurement accuracy range (kg) accuracy+_1%
Water metering accuracy range (kg) accuracy+_1%
Additive metering accuracy range (kg) accuracy+_2%
