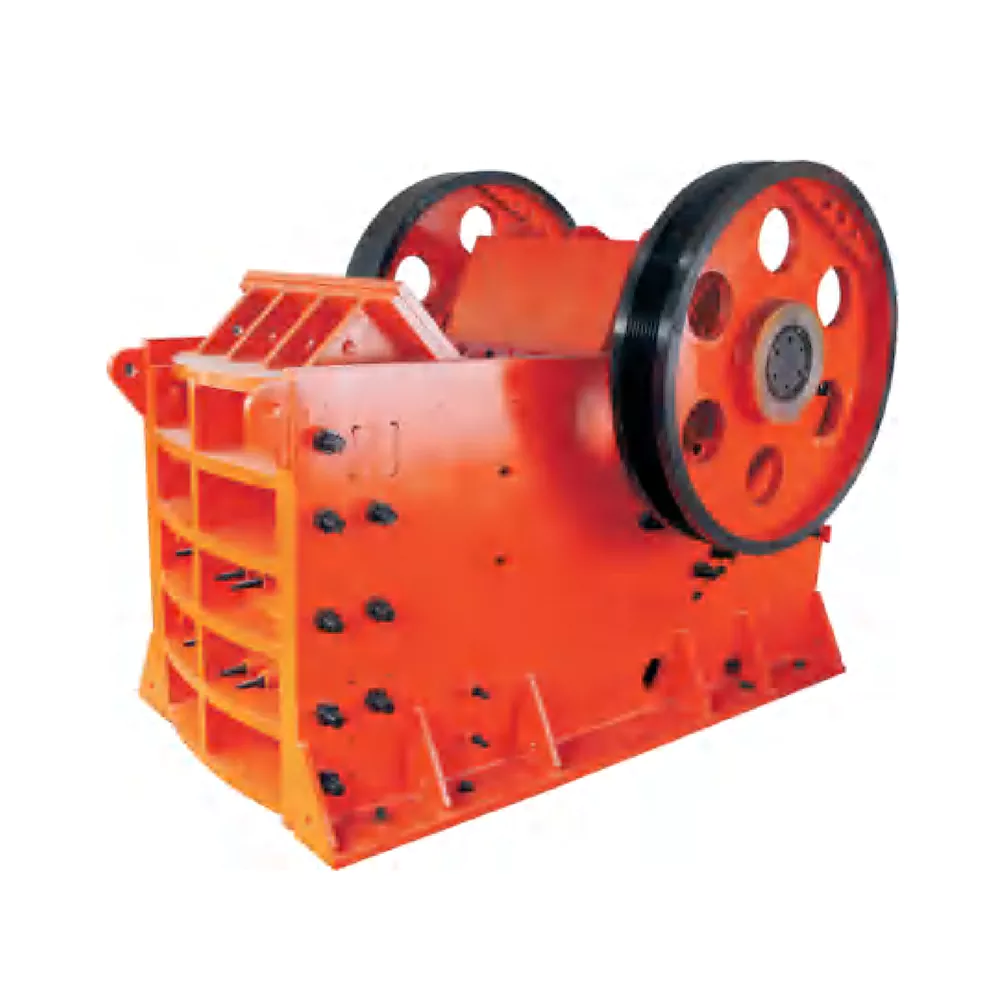

Jaw Crusher is ideally suitable for primary and secondary crushing for material with compression strength less than 320MPA. Jaw Crusher has the features of high crushing ratio, larger capacity, even final product size, simple structure, reliable performance, convenient maintenance, lower operation cost, etc. It is widely used in mining, metallurgy, construction, highway, railroad and water conservancy industry, etc.
Technical Parameter
| Model | Feeding opening size (mm) | Max feeding size (mm) | Discharging opening size(mm) | Capacity (t/h) | Motor power(kw) | Weight (t) | Overall dimension (LxWxH) (mm) |
|---|---|---|---|---|---|---|---|
| PE-250x400 | 250x400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1180x1087x1245 |
| PE-400 x 600 | 400x600 | 340 | 40-100 | 16-60 | 30 | 6.65 | 1797x1716x1581 |
| PE-500X750 | 500x750 | 425 | 50-100 | 40-110 | 55 | 11.73 | 2119x1918x2046 |
| PE-600X900 | 600x900 | 500 | 65-180 | 80-180 | 55-75 | 16.13 | 2309x2028x2368 |
| PE-750X1060 | 750x1060 | 630 | 80-180 | 110-320 | 90-110 | 30 | 2730x2472x2840 |
| PE-870X1060 | 870x1060 | 750 | 1 70-270 | 180-360 | 90-110 | 31.22 | 2990x2416x2893 |
| PE-900X1200 | 900x1200 | 780 | 95-225 | 220-450 | 110-132 | 49 | 3362x2750x3260 |
| PE-1000x1200 | 1000x1200 | 850 | 195-280 | 280-550 | 110-132 | 51 | 3823x2938x3285 |
| PE-1200x1500 | 1200x1500 | 1020 | 150-300 | 400-800 | 160-220 | 100.9 | 4930x3334x4057 |
| PEX-150x750 | 150x750 | 120 | 18-48 | 8-25 | 15 | 3.5 | 1252x1593x1025 |
| PEX-250x750 | 250x750 | 210 | 20-50 | 13-35 | 30 | 4.96 | 1435x1832x1715 |
| PEX-250X1000 | 250x1000 | 210 | 25-60 | 16-52 | 30-37 | 6.5 | 1706x1964x1380 |
| PEX-250X1200 | 250x1200 | 210 | 25-60 | 20-61 | 37-45 | 8.8 | 1700x2132x1450 |
| PEX-300X1300 | 300x1300 | 250 | 20-90 | 25-95 | 55-75 | 12.6 | 2026x2320x1723 |
