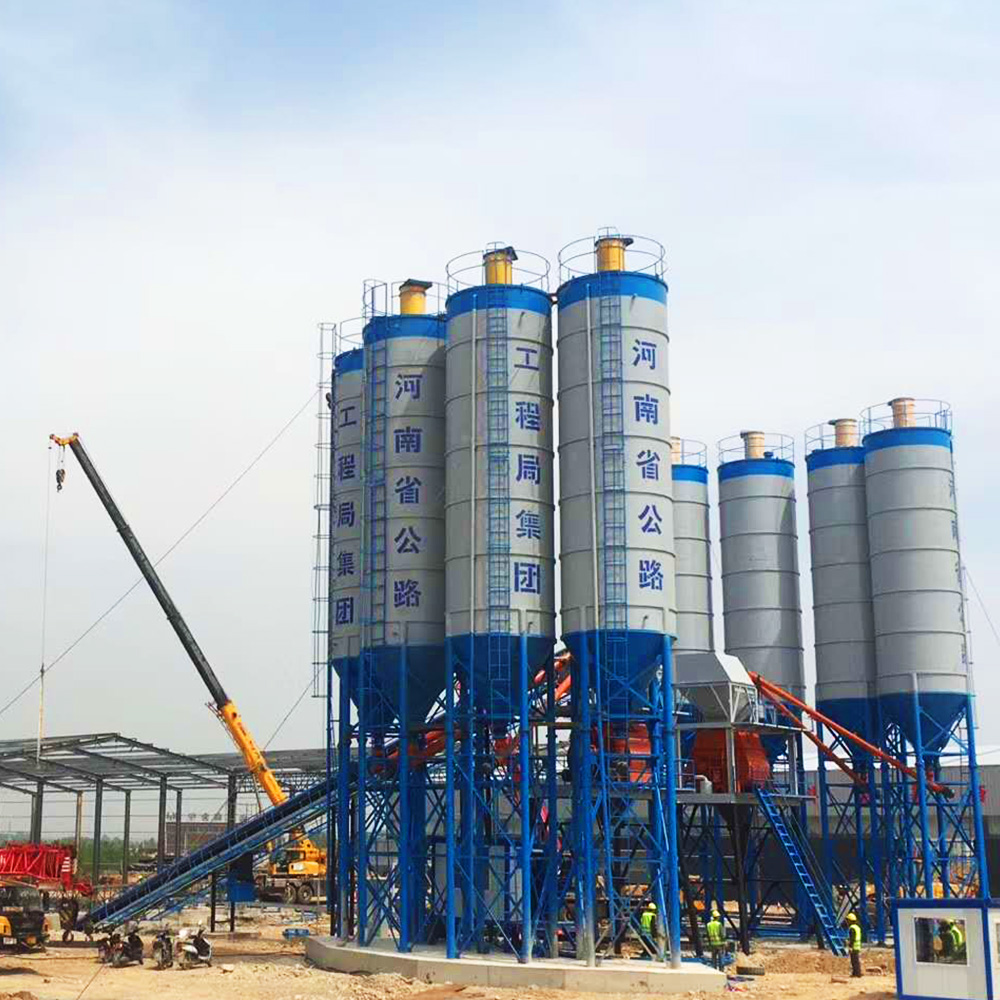

HZS120 concrete batching plant

Mixer model: JS2000
Batching machine model: PLD3200
Discharge height: 4m
Theoretical production capacity: 120m³/h
Total power: 210Kw
Application field: widely used in large and medium-sized prefabricated component factories and industrial and civil construction projects such as roads, bridges, water conservancy, docks, etc.

Product advantages
The theoretical productivity of HZS120 concrete batching plant is 120m3/h, also known as 2-square batching plant. The main engine is JS2000 forced twin-shaft concrete mixer, the nominal capacity of the mixer is 2000L, and the batching machine is PLD3200. The whole set of equipment includes twin-shaft mixer, batching machine, cement silo and screw conveyor, conveyor belt, and computer control room. It can produce various kinds of concrete such as plastic and dry hard concrete. It has high production efficiency, short mixing time and beautiful appearance. It is widely used in large and medium-sized building construction, roads and bridges, and prefabricated factories producing concrete products. It is an ideal product for the production of commercial concrete. equipment.
HZS120 commercial concrete batching plant system description:
1. The star gear reducer is small in size, high in efficiency and extremely reliable.
2. The lining plate and blade are made of high-chromium wear-resistant cast iron, the angle design is reasonable, the stirring effect is good, the speed is fast, and the service life is long.
3. The four-axis end is equipped with a fully automatic sealing oil injection system.
4. The discharge door is controlled by hydraulic oil pump, with three stop points and manual opening, without noise.
5. Overweight design, excellent shock absorption.

Our TORUI concrete mixing plant and concrete batching plant is popular in Central Asia. We have a cheap price with installation. If you want to buy a concrete mixing plant, please contact us. We are a professional firm of concrete batching plant.

Whole station partmodelHZS120
Theoretical productivity (m3/h)120
Standard discharge height (m)4
Working cycle time (s)60
Dimensions (mm) (length X width X height)55885x20200x21600
Total installed capacity (kw)210
Mixer partmodelJS2000
Batching machine partmodelPLD3200
Pneumatic systemAir compressor model1.8-7
Rated air volume (m3/min)1.67
Rated exhaust pressure (MPa)0.8
Motor power (KW)15
Weighing systemSand and gravel measurement accuracy range (kg) accuracy+_2%
Cement measurement accuracy range (kg) accuracy+_1%
Water metering accuracy range (kg) accuracy+_1%
Additive metering accuracy range (kg) accuracy+_2%
