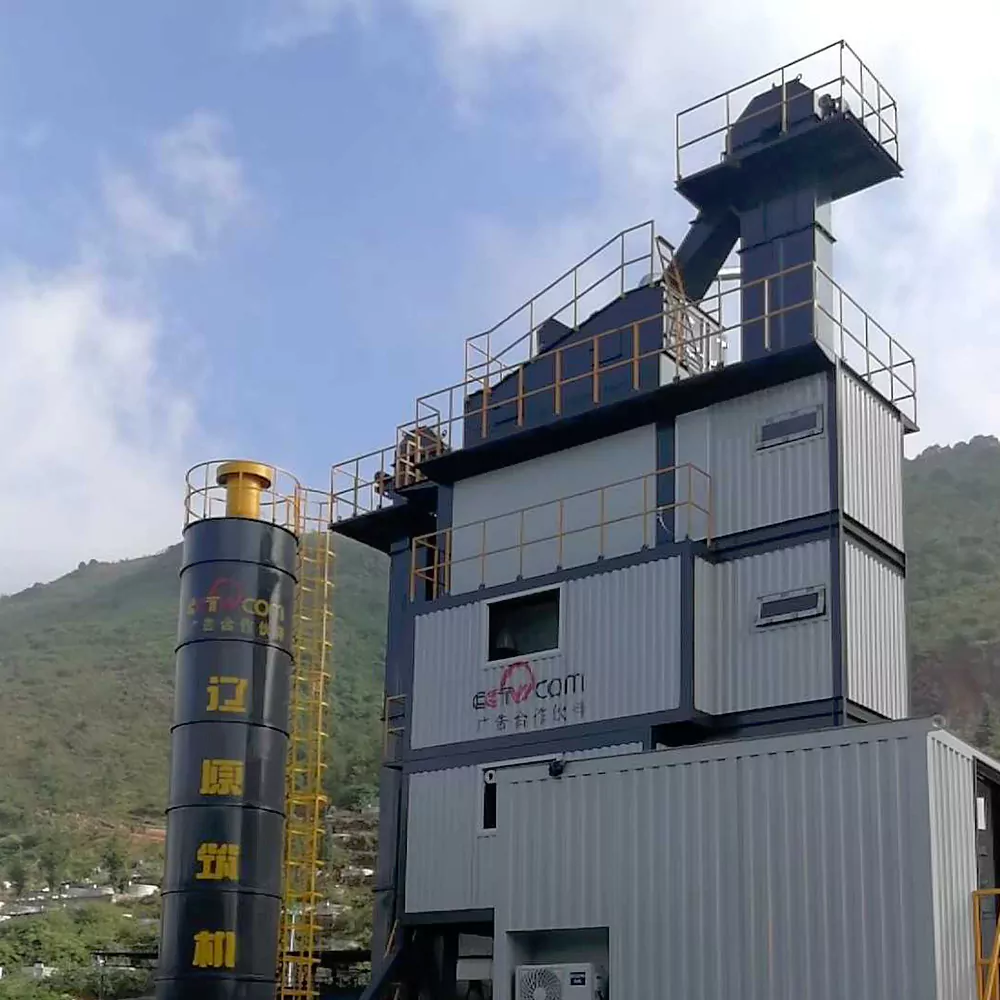

LB Series asphalt batch mixing plant is stationary type batch mixing asphalt plant,featured by high efficiency arge output, precise measurement and high quality ;finished asphalt, fit for road construction projects in all Model and Parameter grades and scales;especially for large-scale and high- grade road construction project.
| Quote and Terms | |
|---|---|
| Name | Description |
| LB700 Asphalt Mixing Plant | Stationary forced-periodic type Productivity: 56 tons / hour ;1 set |
| Delivery date | 30-35 working days after receipt of advance payment |
| Warranty | The equipment is installed and debugged on site within 12 months. |
| Installation and debugging training | 1.The buyer prepares the foundation and circuit according to the seller's drawings, and provides the Russian drawings within 3 working days after signing the contract. 2.Users need to prepare electrician, welder, operator (we will train him to operate maintenance equipment), worker, and other necessary construction tools such as truck crane, we will give you a detailed form later. 3.We will send 1-2 engineers to the local area to install and debug the equipment. The customer needs to pay the engineer's round-trip air ticket and be responsible for local accommodation. 4.Free service is provided within 30 days from the day the engineer arrives at the construction site, and the engineer will be paid 100 USD/person/day for more than 30 days. The user is responsible for the engineer's local accommodation and transportation insurance, and assists the seller's engineer in handling visa matters. 5.Installation and commissioning training time is about 30 days. |
| technical parameter | |
|---|---|
| Model | LB700 Asphalt Mixing Plant H.S номер: 84743200 |
| Type | Forced hot stirring |
| Yield | 56 tons/hour under normal conditions |
| Mixer capacity | 700KG/stir once |
| Fuel is diesel or heavy oil | Consumption: 5.5-7.5KG (per ton of finished asphalt concrete produced) |
| Weighing accuracy | Hot aggregate: ±0.5%; Asphalt: ±0.3%; Mineral powder: ±0.2% |
| Finished material temperature | 130℃-165℃ Can be adjusted |
| Air pollution | ≤20mg/Nm³ |
| Noise | ≤70db(A) |
| Operation | Fully automatic mode Semi-automatic mode Manual mode Switchable |
| Installed power | 170 KBT |
| Rated voltage | 220V/380V-50Hz Can be replaced |
| Floor space | L*W*H: 35m×24m×18m |
| Random document | 1.General installation diagram Foundation diagram Circuit diagram Russian 2.Russian Instructions 3.Product certification |
| Certificate | CE EAC |
| Specification | |||
|---|---|---|---|
| Name | Component | Description | Quantity |
| 1.Aggregate batching device | Silo | Volume 6 m³ Loading height 3.5M | 4 |
| Belt feeder (variable frequency adjustable) | Size:В500mm*3400mm Power: 1.5kw Yield: 2.8-65 | 4 | |
| Frequency converter | 4 | ||
| Sand Hopper Vibrator | Power : 0.2kw | 1 | |
| Horizontal conveyor (collect mixture) | Size:В550mm*29400mm Max output: 80t/h, power: 3kw | 1 | |
| Filter screen | Screen out the material larger than 40MM Power 1.5kw | 1 | |
| Conveyor(feed for dryer) | Size:В500mm*16000mm Maximum output 120 tons/hour power 4KW | 1 | |
| 2.Drying system | Dryer | Size : 1200mm(diameter)*5200mm(length) Maximum output 60 tons/hour | 1 |
| Mineral thermal insulation wool (rock wool) and stainless steel | Thickness : 50mm | 1 | |
| Engine nature (kind nature:friction) | Power : 15 kw | 1 | |
| Temperature sensor | With infrared thermometer | 1 | |
| 3.Coal burning system | A set of coal burner | Automatic control | 1 |
| Coal crusher driving motor | power:22kw | 1 | |
| Coal timing | Motor:1.5kw | 1 | |
| Coal burning stove drawing fan motor | Power:3kw | 1 | |
| Oil ignition system motor | 0.75kw | 1 | |
| 4. Dust removal system | Cyclone dust removal + water dust removal | 1 | |
| Screw conveyor | Power : 3kw | 1 | |
| Induced draft fan | Power: 18.5kw | 1 | |
| Water dust removal pump motor power | 2×3kW | 1 | |
| 5. Mineral powder adding system | Mineral powder temporary storage tank | Volume: 0.5m3 | 1 |
| Screw conveyor | Capacity: ≥ 10t/h, power: 2.2kw | 1 | |
| Hoist (plate chain type) | Capacity : ≥ 20t/h Power : 4 kW | 1 | |
| 6.Bitumen supply system (Type: thermally conductive oil) | Bitumen tank | Capacity: 40 тонн Heat protection:(Type: heat-conducting oil) | 1 |
| Heat-conducting oil system | 200,000 kcal | 1 | |
| Asphalt output pump | Power: 5.5kw | 1 | |
| Asphalt circulating pump | Power: 5.5kw Capacity: 20 m³/h | 1 | |
| Asphalt transfer tank | Capacity:2 tons | 1 | |
| 7.Screening and stirring system | Hot material elevator (plate chain type) | Capacity: ≥ 80t/hour; Power: 7.5kw | 1 |
| four-layer vibrating screen Screen mesh size 4 layers: 3x3, 6x6, 11x11, 25x25 (mm×mm) (If users have different requirements for screen mesh size, please be sure to submit them before the contract is put into production.) | Productivity: ≥ 80t/h, Power: 7.5kw | 1 | |
| Under-sieve buffer hot silo | 4+1 warehouse | 1 | |
| Hot Aggregate Weighing Bucket | Volume: 800kr | 1 | |
| Add powder weighing hopper | Volume: 100kr | 1 | |
| Asphalt weighing hopper | Volume: 100kr | 1 | |
| Twin Shaft Mixer | Volume: 800kg/time;800KG/time mixing cycle Period: 45s Stirring time: 18s Power: 22kw*2 | 1 | |
| 8.Pneumatic system | Compressor | Capacity: 0.8Nm³/min Power: 7.5KW | 1 |
| Gas tank | Volume : 2000L | 1 | |
| 9.Control system Russian language | Motor control system | 1 | |
| Temperature control system | 1 | ||
| Burner control PLC | 1 | ||
| PLC weighing control | 1 | ||
| Mixing control PLC | 1 | ||
| Operating room size: 4000мм*2200мм*2300мм | Control cabinet | 2 | |
| Operating platform | 1 | ||
| Voltmeter | 1 | ||
| Rheometer | 1 | ||
| Printer | 1 | ||
| Industrial computer | 1 | ||
| Air conditioner | 1 | ||
| 10.Additional | Accessories;A set of common tools | 1 |
If you want to buy asphalt mixing plant，please contact us.
